Non-return VALVES - food grade / fda for tri clamp fittings
Designed to work with Tri Clover / Tri Clamp hygienic fittings, acting as a sanitary clamp gasket and backflow preventer in a single, compact & easy-to-install component - just like installing a Tri Clamp gasket
Three sizes: 1”, 1.5” and 2” (BS4825-3, ASME BPE, ISO2037-1 & 14MPW)
(BS4825-3 Internal pipe diameters: 1"=22.2 mm, 1.5"=34.9 mm & 2"=47.6 mm)
Materials: Food Grade Silicone (Red & Magnetic) & Food Grade EPDM (Black & Magnetic)
Three Hardness Values: 40A Shore (Super-Soft), 60A Shore (Soft) & 80A Shore (Hard)
SEE our products
Technical information about our non-return valves - click below
VIEW PRODUCT DATATrivalve in action
Our unique non-return valve / backflow preventers are available in:
3 sizes (1", 1.5" & 2")
2 food grade material choices (silicone & EPDM)
3 hardness values (40A, 60A and 80A Shore)
cHECK valve Specifications
Trivalve is a Registered Design: EUIPO 003771286-0001, UK 4015698.
Materials

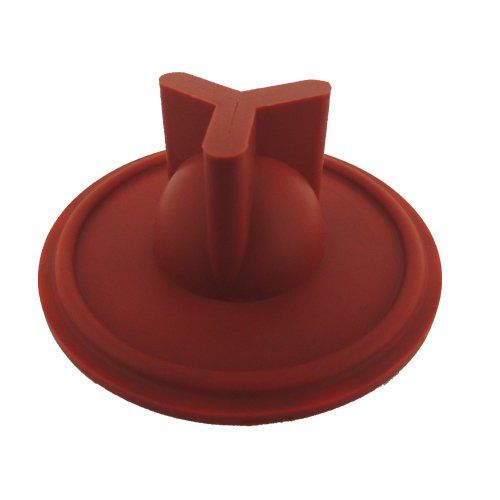

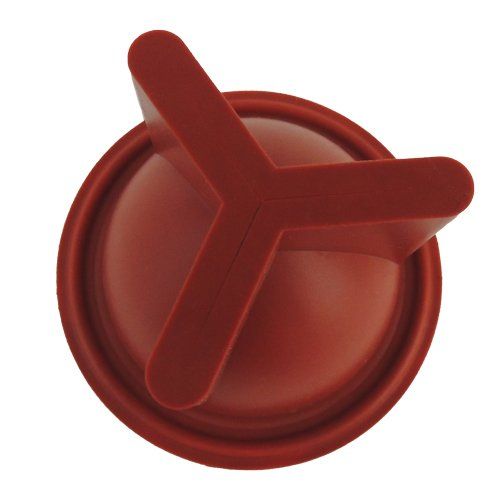

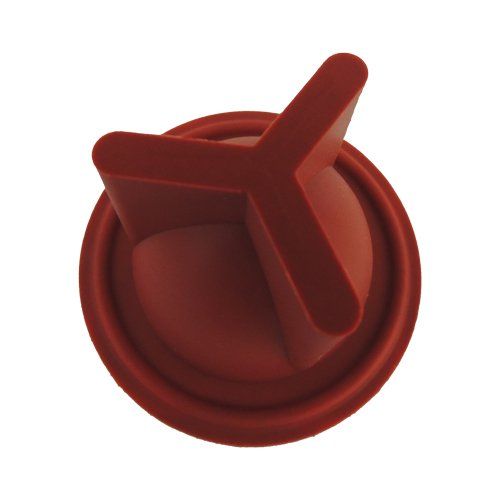

Silicone (red)

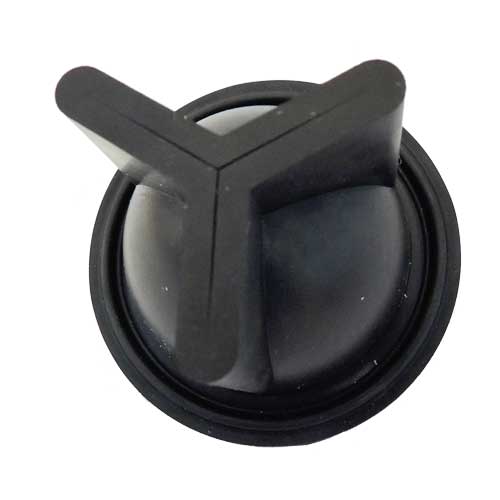

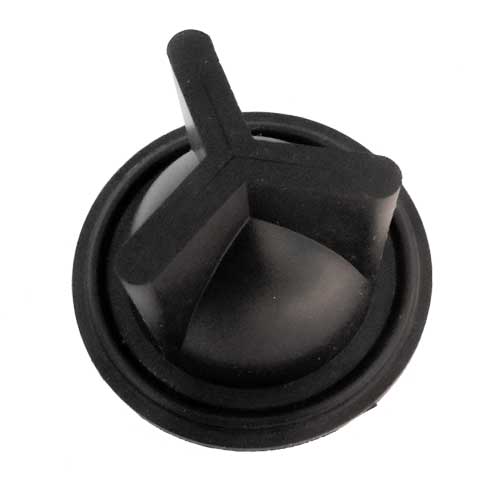

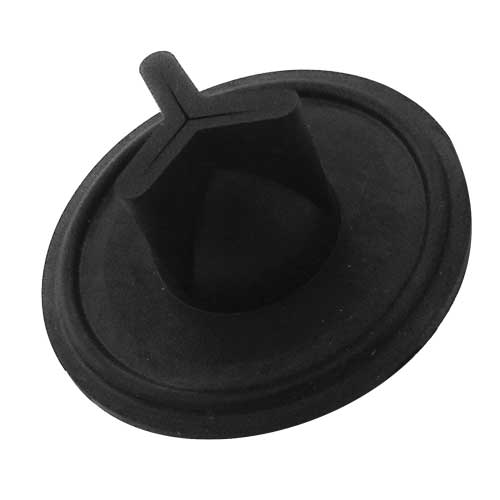

EPDM (black)
All materials are Food Grade / FDA compliant and magnetically susceptible. Certificates of Conformance are available on request.
Sizes

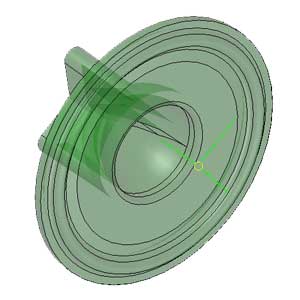

1 inch (Pipe IDs: 22.1 - 22.6 mm)

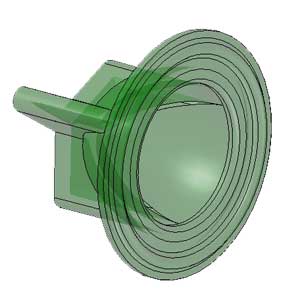

1.5 inch (Pipe IDs: 34.8 - 35.6 mm)

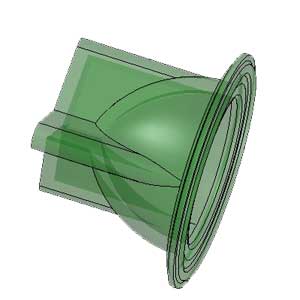

2 inch (Pipe IDs: 47.5 - 48.6 mm)
Trivalve is designed to work best in BS4825-3, ASME BPE (2012) & 14MPW piping sizes. Custom sizes available on request.
Nominal Hardness
40A Shore (Super-Soft)
60A Shore (Soft)
80A Shore (Hard)
A softer valve will open more easily than a harder valve and exhibit a lower pressure drop. A harder valve will resist more reverse pressure than a softer valve. Custom hardness values are available on request.
